Sector Split - EBG Ost

There are many options available to allow the splitting of Bremen's sector group East. In general, sector ownership is determined according to the definitions in the sectorfile. Dynamic splitting is not available in Euroscope/Topsky.

Sector combinations shall be decided to suit the traffic needs, workload and controller availability.

• In general, FLG + MAR should be the standard option for splitting the sector group. This split also reflects real-world sector combinations most of the time.
  • For events in Berlin, FLG + MAR is the best way to balance traffic and reduce the controller's workload
  • For events in Copenhagen, MAR + MRZ is recommended, but can also be changed to the FLG + MAR if traffic/workload allows.
  • During the activity of the VPA North-East (military activity inside sector MRZ), it is recommended to split sector MAR and MRZ.
• All other sector splits can be beneficial when traffic load is imbalanced between the north and south (e.g. multiple event airports or shuttle events)

EDWW East Sectorization

The following article will only show the most common sector combinations.
You can view more sector combinations here: https://atciss.vatsim-germany.org/map

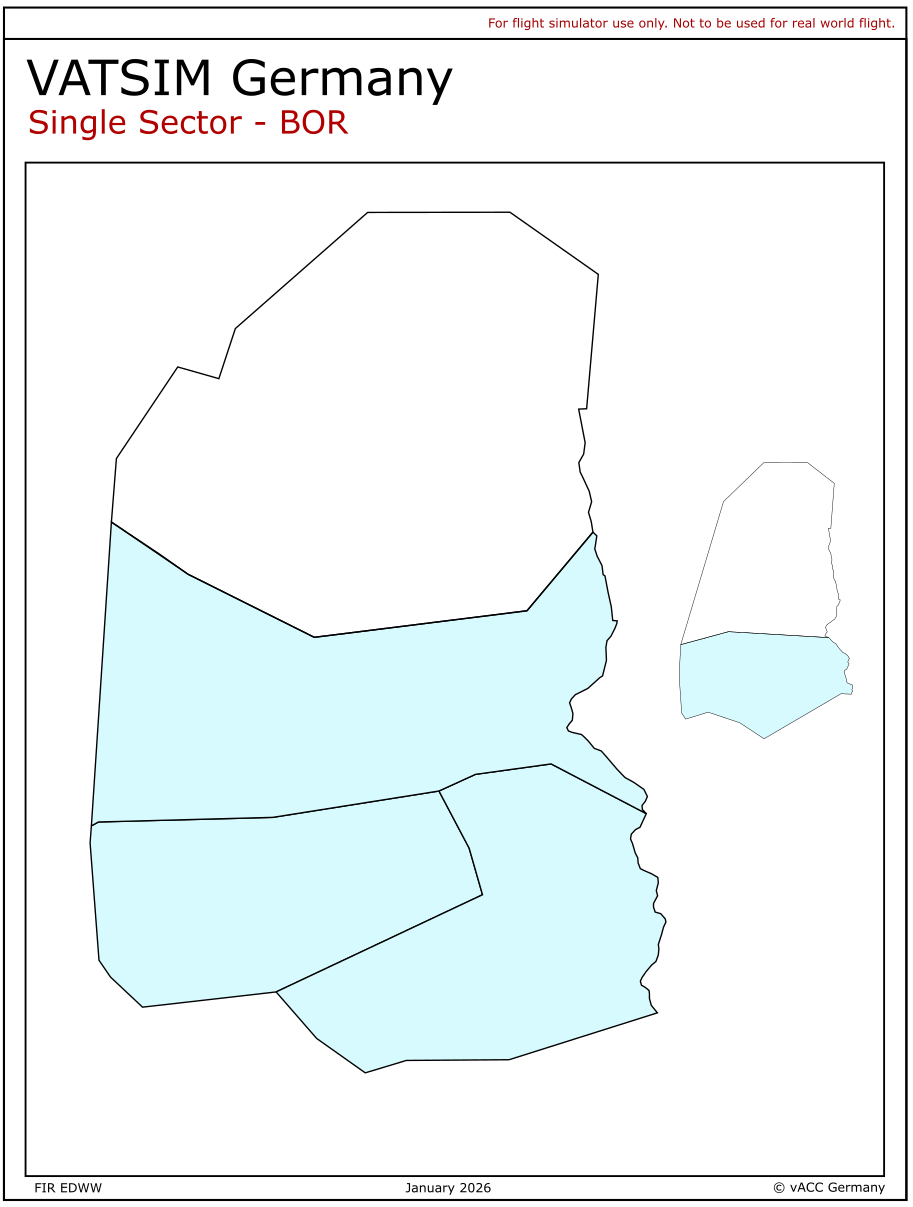

Top-down coverage EDDB: 1. FLG, 2. BOR, 3. MAR

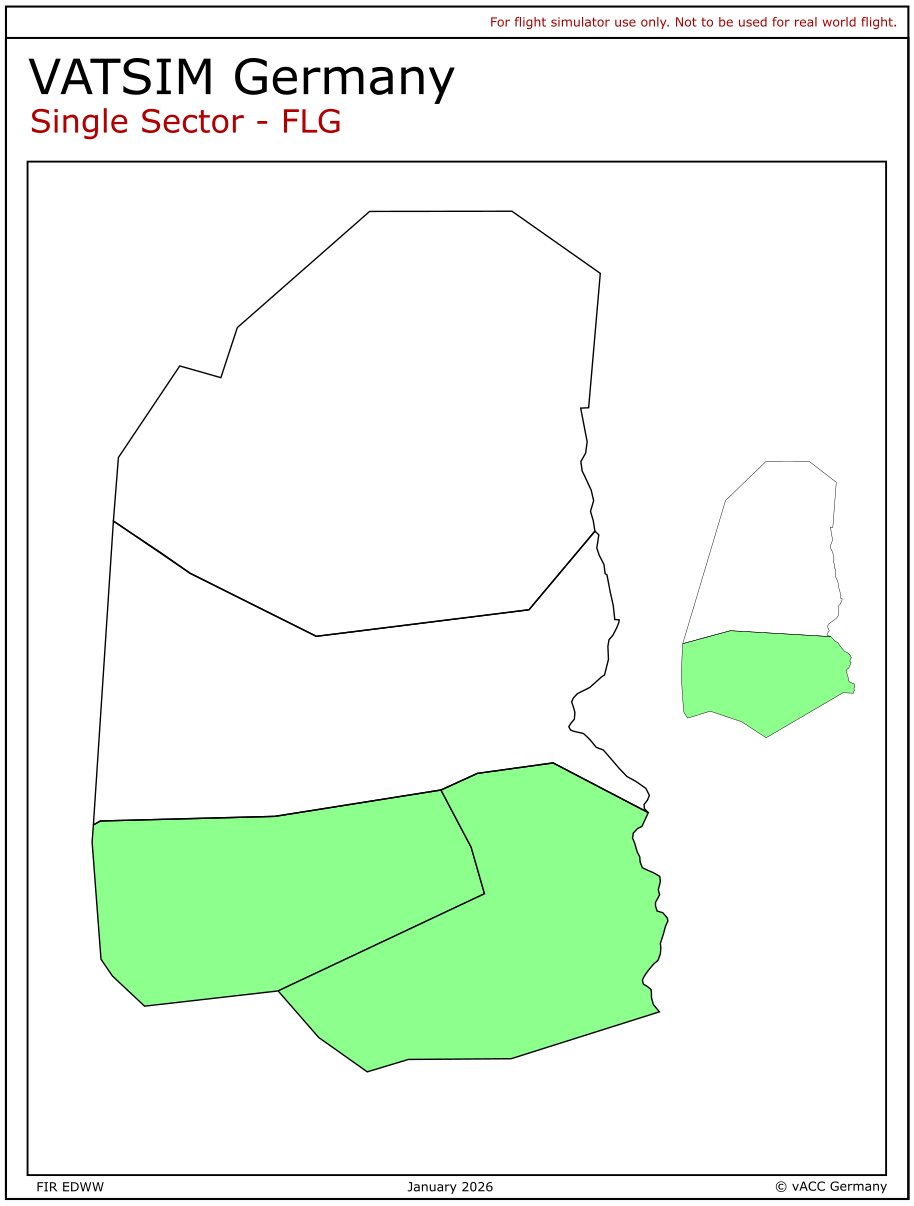

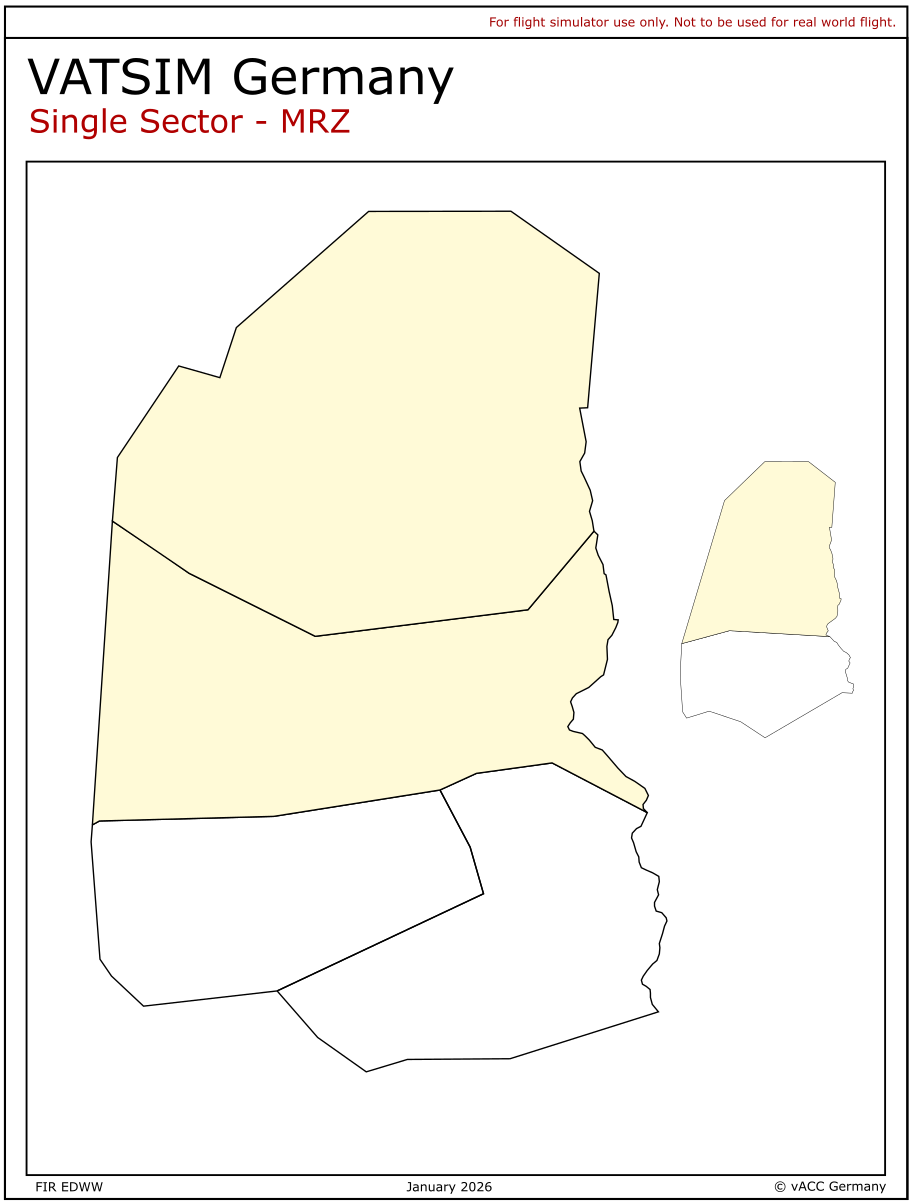

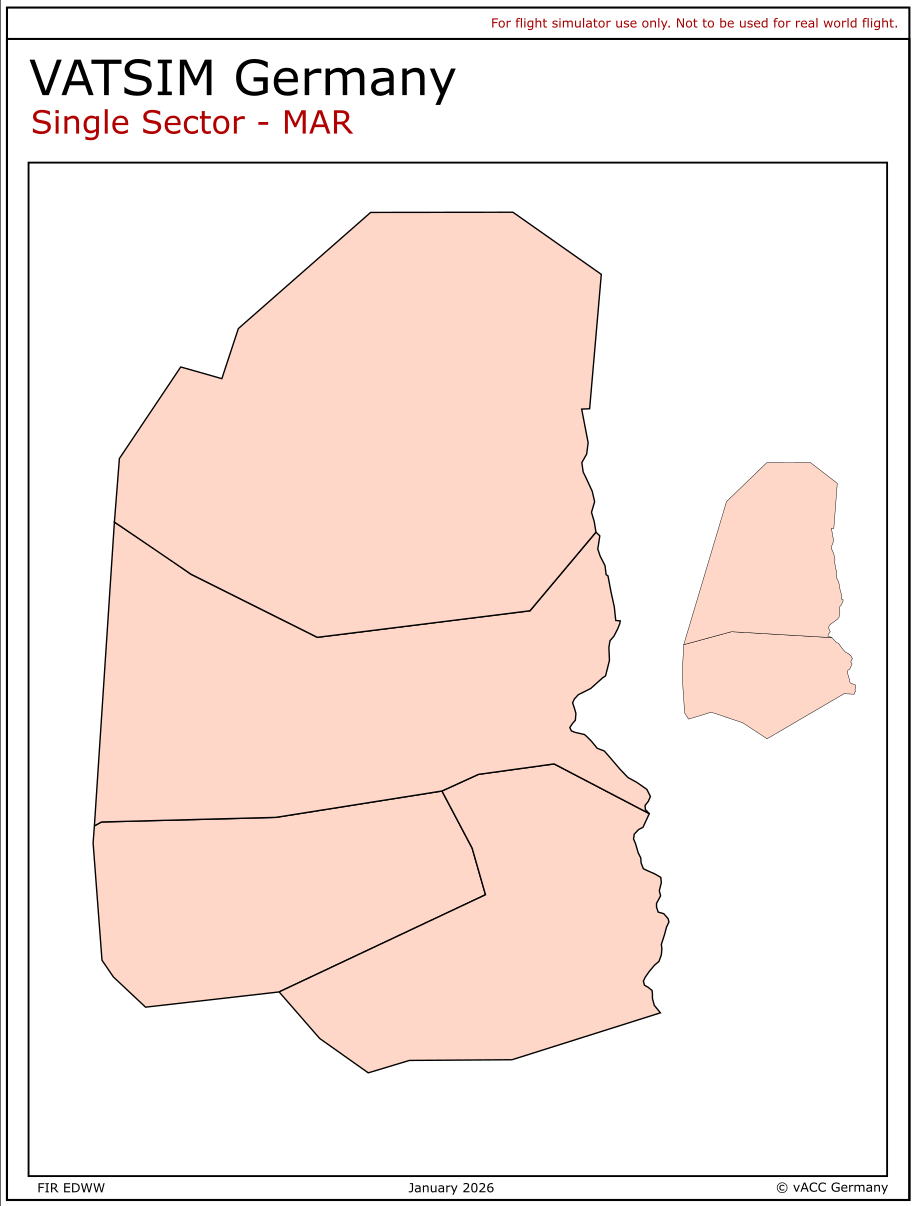

1 Controller

2 Controllers

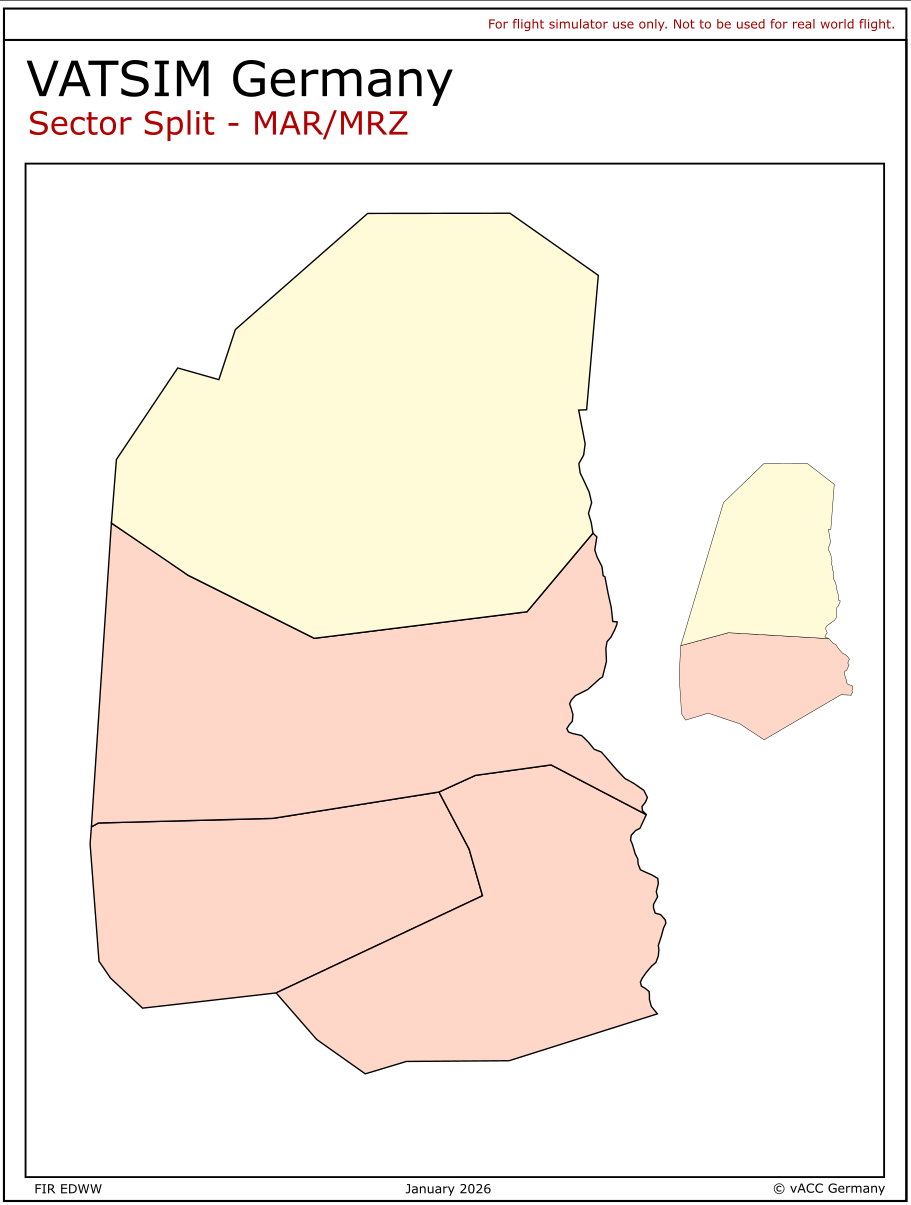

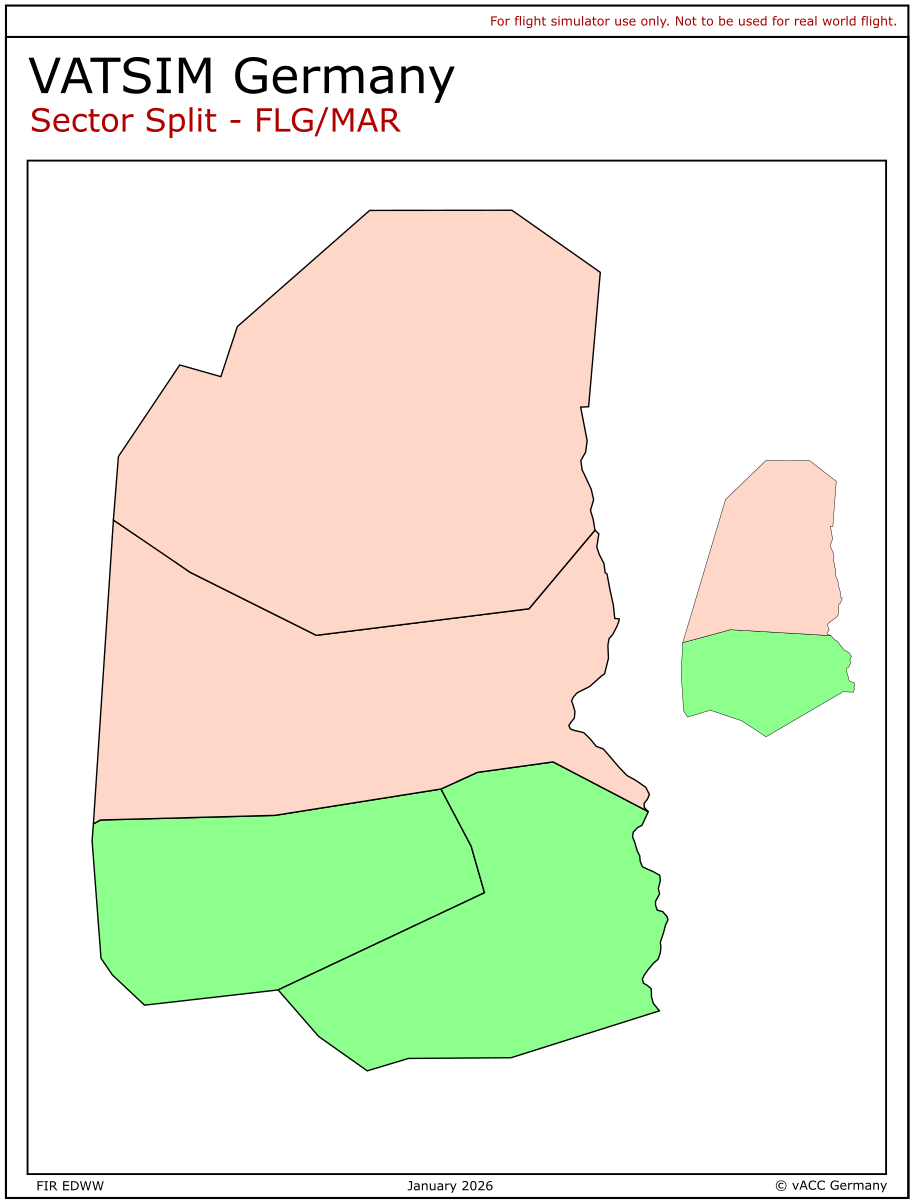

Sectors FLG + MAR	Sectors MAR + MRZ
EDWW_FLG_CTR   136.450	EDWW_MAR_CTR   136.050
EDWW_MAR_CTR   136.050	EDWW_MRZ_CTR   124.175

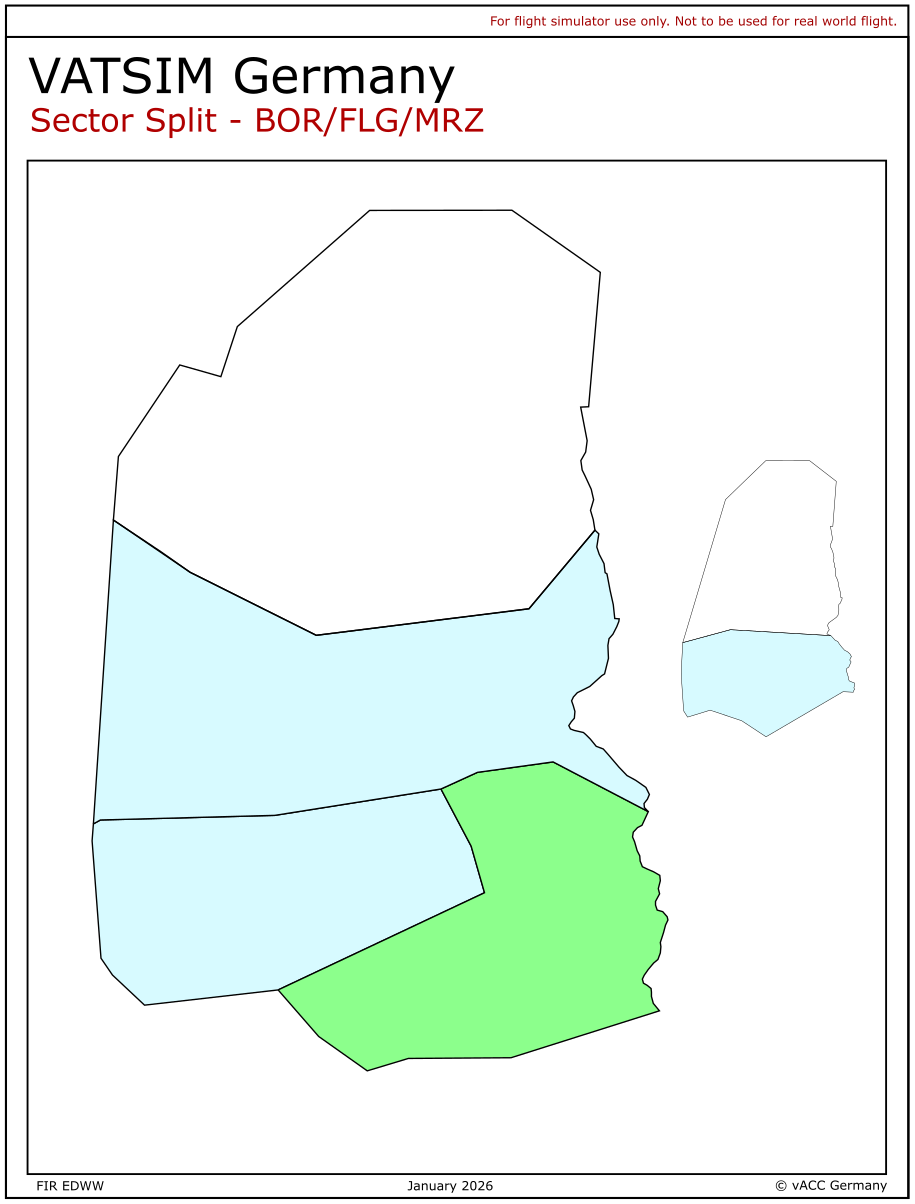

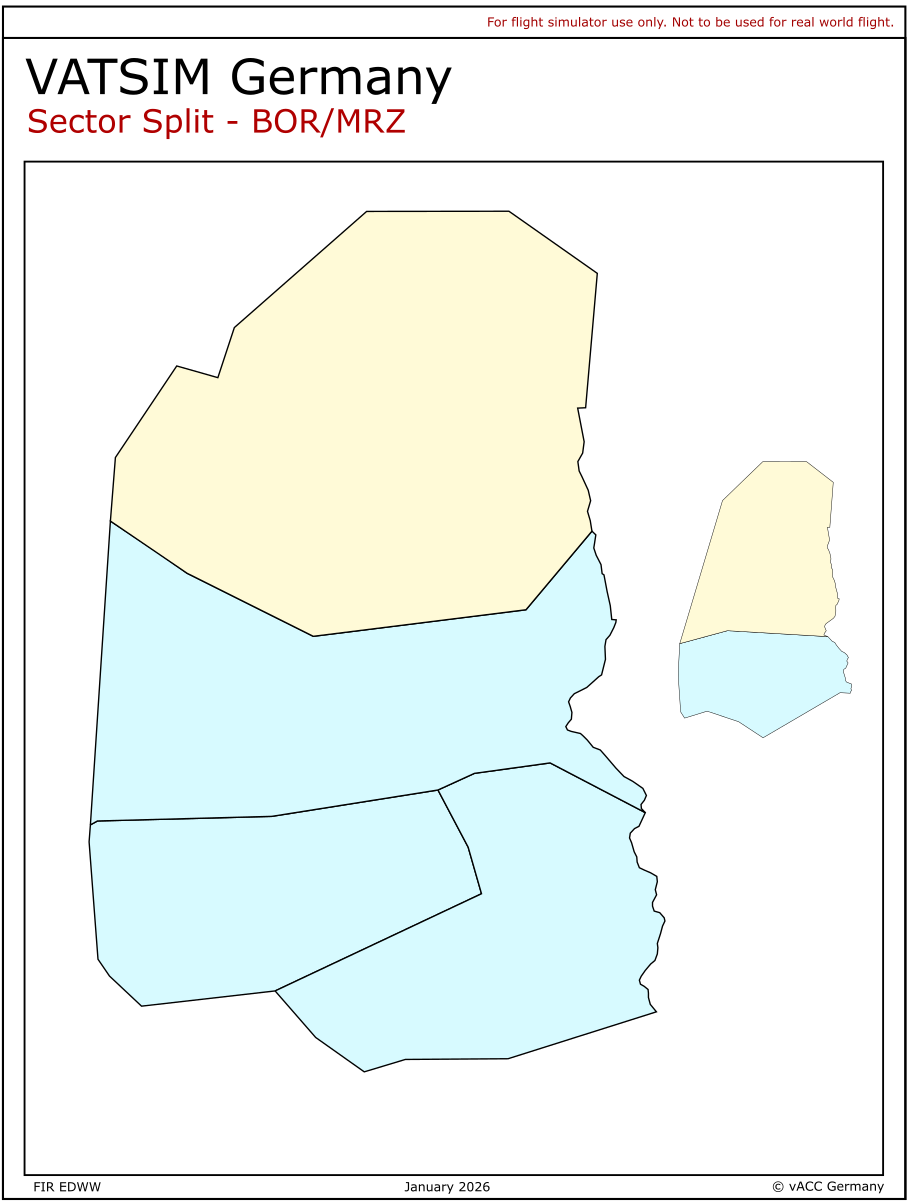

Sectors BOR + MRZ	Sectors BOR + FLG
EDWW_BOR_CTR   123.225	EDWW_BOR_CTR   123.225
EDWW_MRZ_CTR   124.175	EDWW_FLG_CTR   136.450

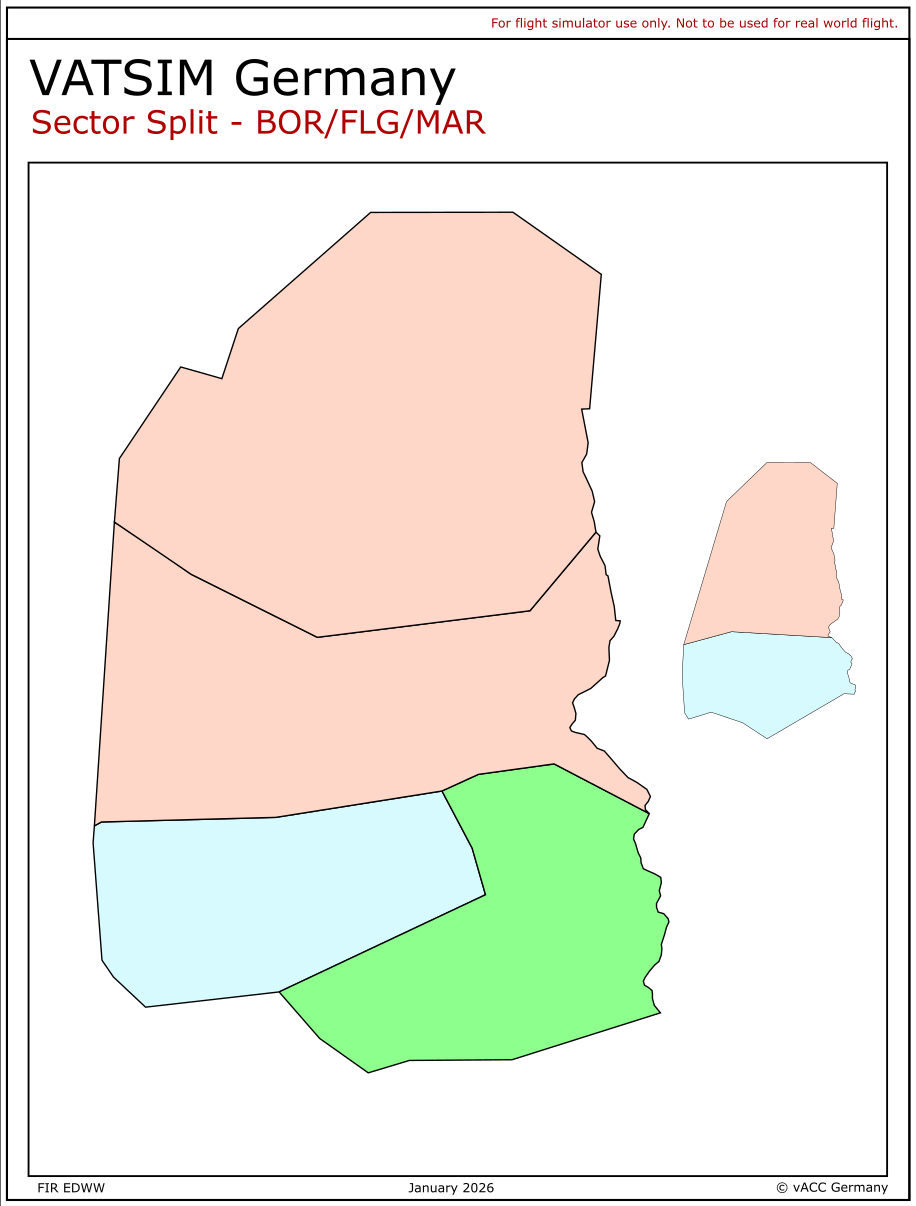

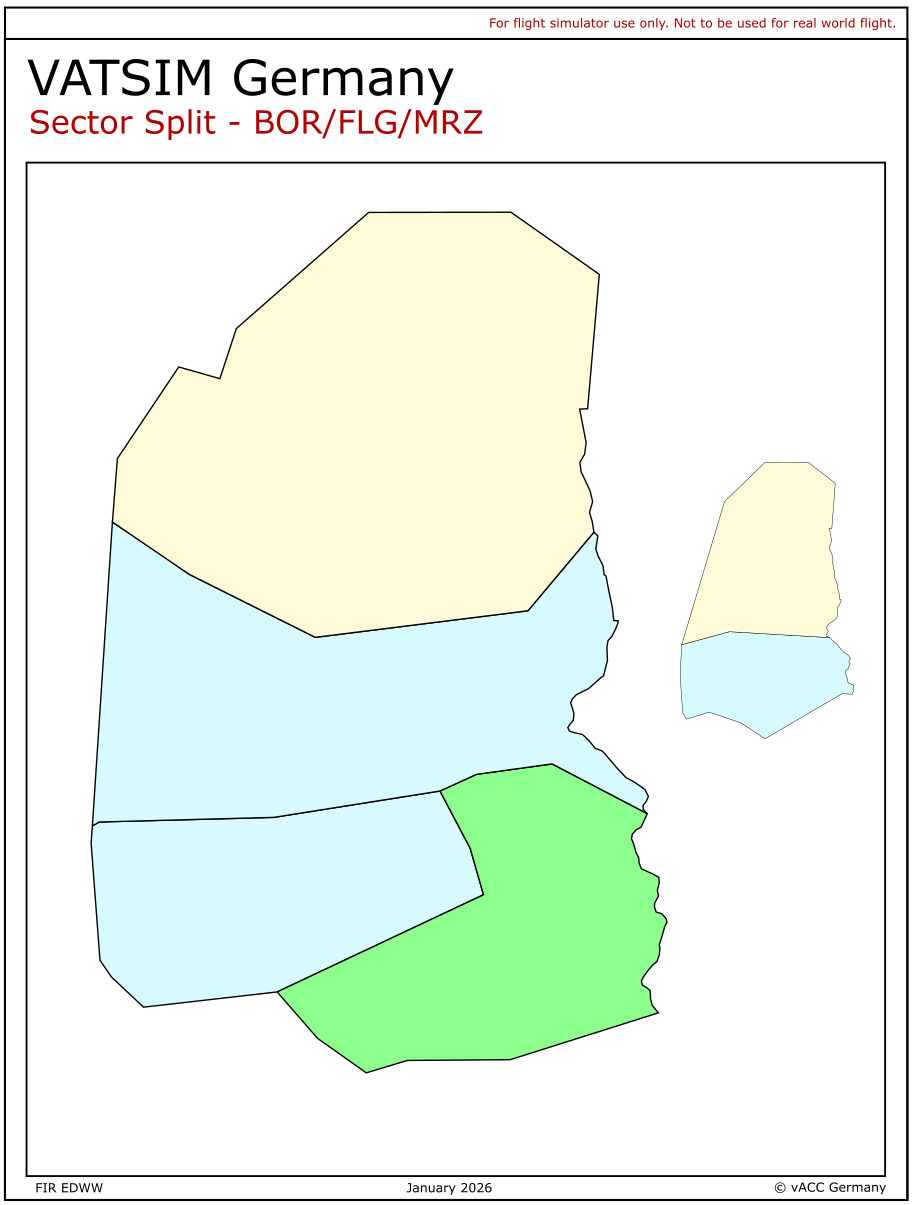

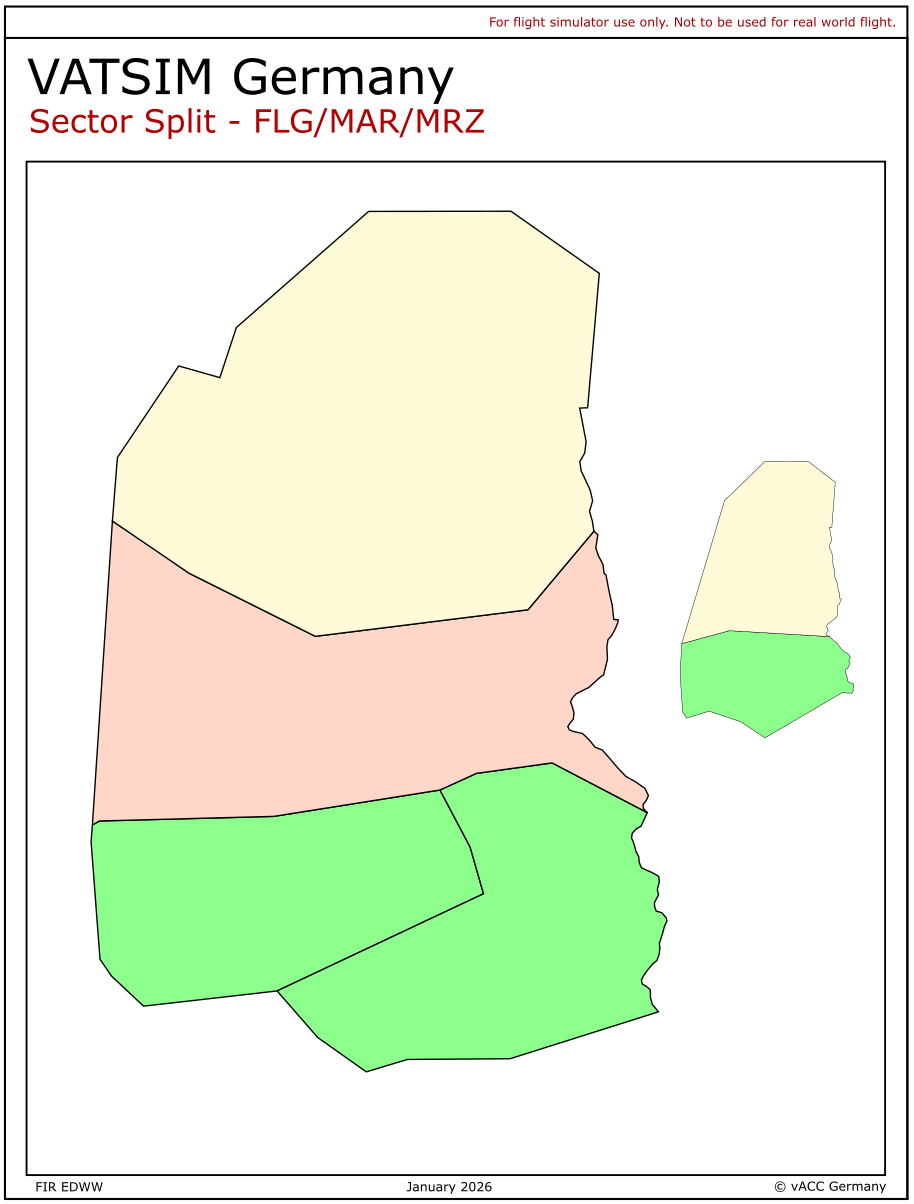

3 Controllers

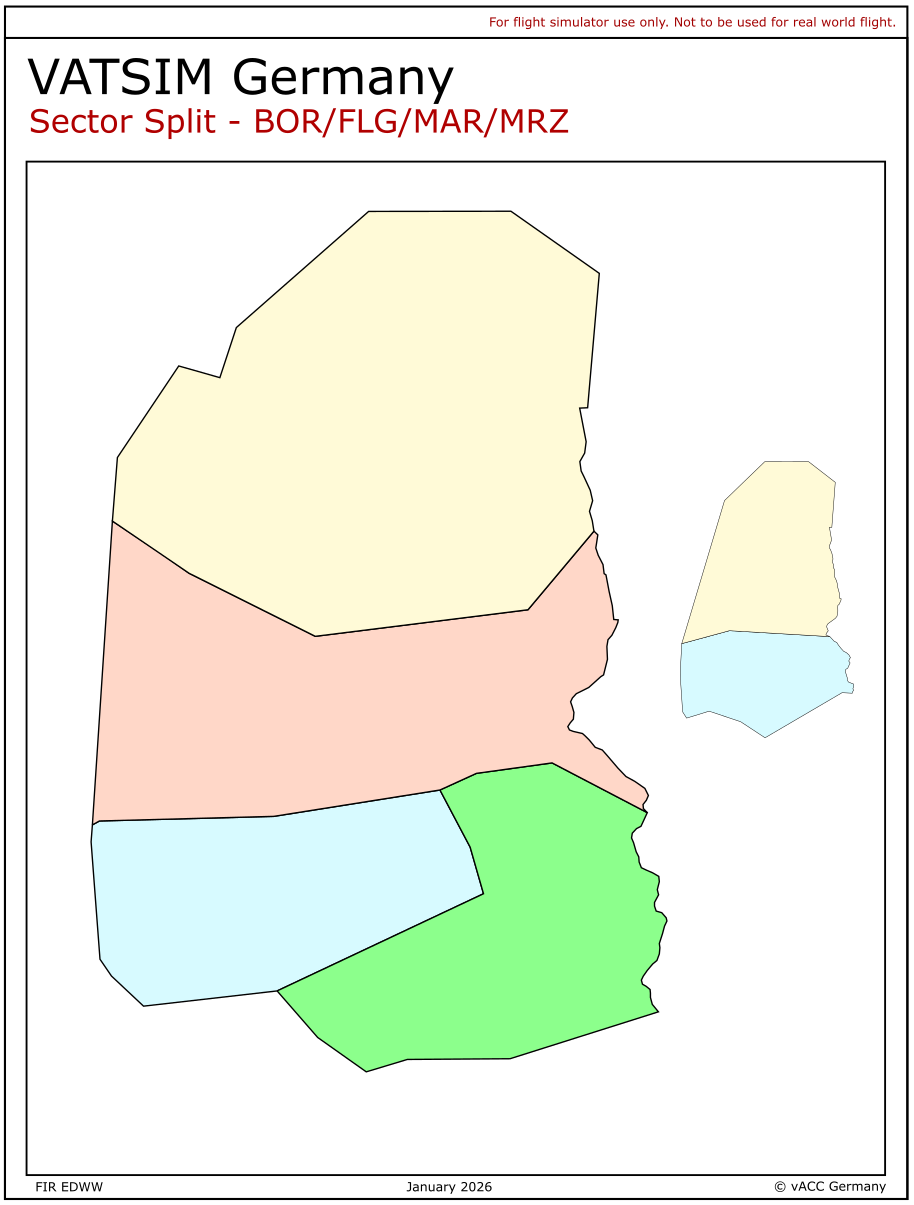

4 Controllers
